Kitronik :GAME controller for Micro:bit

Kitronik :GAME controller for Micro:bit

Regular price $14.00 USD
Regular price $15.00 USD Sale price $14.00 USD
Sale Sold out
Shipping calculated at checkout.

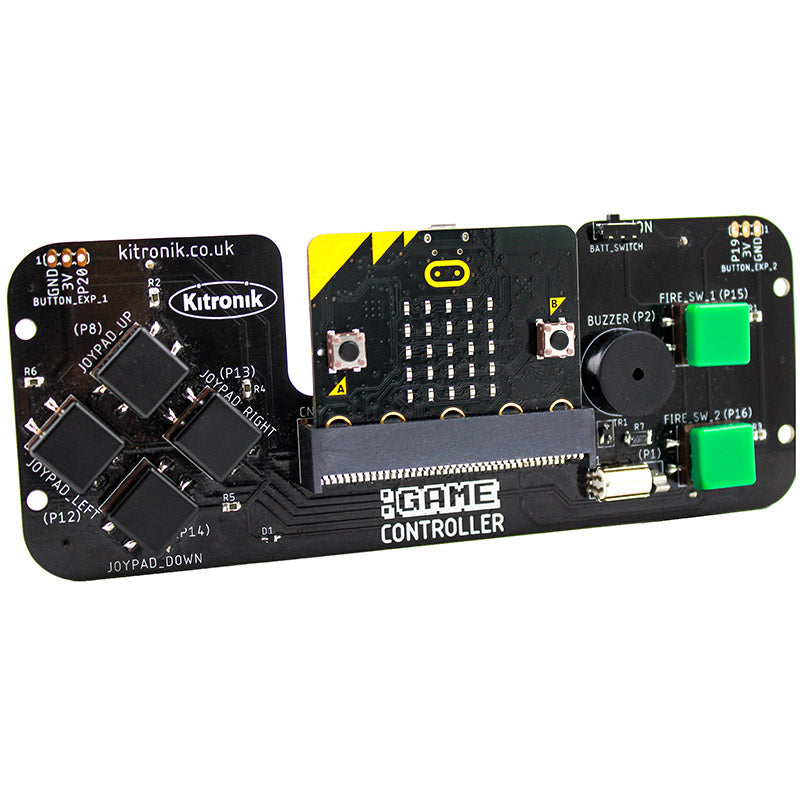

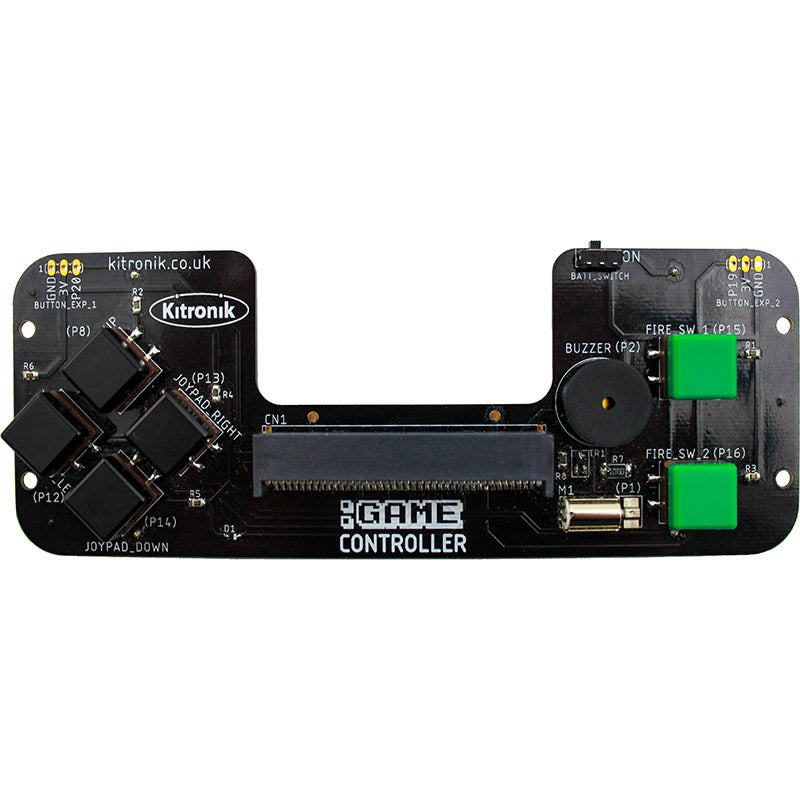

GAME Controller for the BBC micro:bit is a retro gaming accessory for the BBC microbit. It is a programmable gamepad-style controller enabling a better gaming experience on the micro:bit itself, or the ability to control other devices over micro:bit radio.

The :GAME Controller is similar in design and features to the the :GAME ZIP 64, only without the ZIP LED screen. This offers great value if the micro:bits own LED matrix is sufficient for the game or when it will be used to control other devices such as robots and buggies. It will also be much lighter on power consumption than its larger/older sibling.

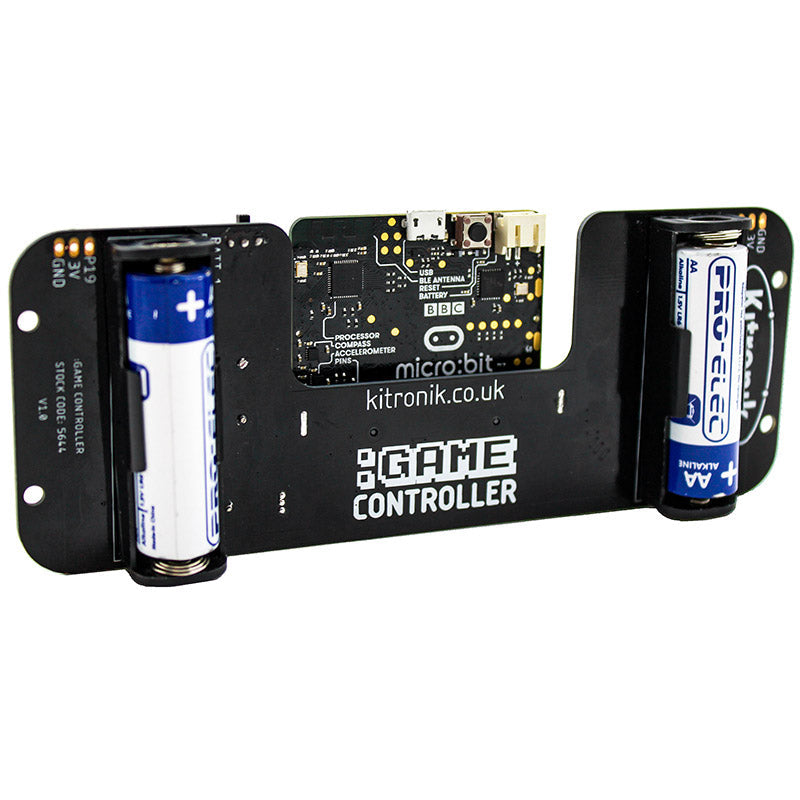

It features on-board sound, 4 x directional buttons, 2 fire buttons, haptic feedback, and breakout points so shoulder buttons can be added. All of these features are fully programmable. The board is powered by two AA batteries, which also power the attached micro:bit.

The micro:bit connects to the board via the Edge Connector on the :GAME Controller. The micro:bit should be inserted firmly into the edge connector, ensuring that the micro:bit LED display is facing in the same direction as the front of the :GAME Controller.



Note:

  • The BBC microbit is NOT included.
  • Care should be taken when using the external breakouts for pins 19 and 20 as GPIOs, as this can cause issues with the I2C devices on the micro:bit itself (e.g. compass and accelerometer).



Features:

  • A hand-held gaming solution for the BBC micro:bit.
  • Fully programmable on-board sound, directional buttons, fire buttons, and haptic feedback.
  • Breakout pads for adding shoulder buttons.
  • Ergonomic design for comfortable game-play.
  • It can also be coded to be a controller for your buggy or robotics projects.
  • We have created custom code blocks for the MakeCode Editor that are available as an Extension to the editor.
  • The board features an on/off switch to power the board on/off or to act as a reset if the :GAME Controller is in an enclosure where the micro:bits own reset switch cannot be accessed.



Contents:

  • 1 x :GAME Controller for the BBC microbit.



Dimensions:

  • Length: 155mm.
  • Width: 60mm.
  • Center Width: 30.5mm.


Requires:
