Solar Cell kit for the Kitronik Environmental Control Board

This solar cell kit has been put together to provide a renewable power source for the Kitronik Environmental Control Board. Harness the energy of the sun to power your projects.

The kit comprises 3 x AA Ni-MH 1300mAh Rechargeable Batteries and a 5.0V 130mA Polycrystalline Solar Cell.

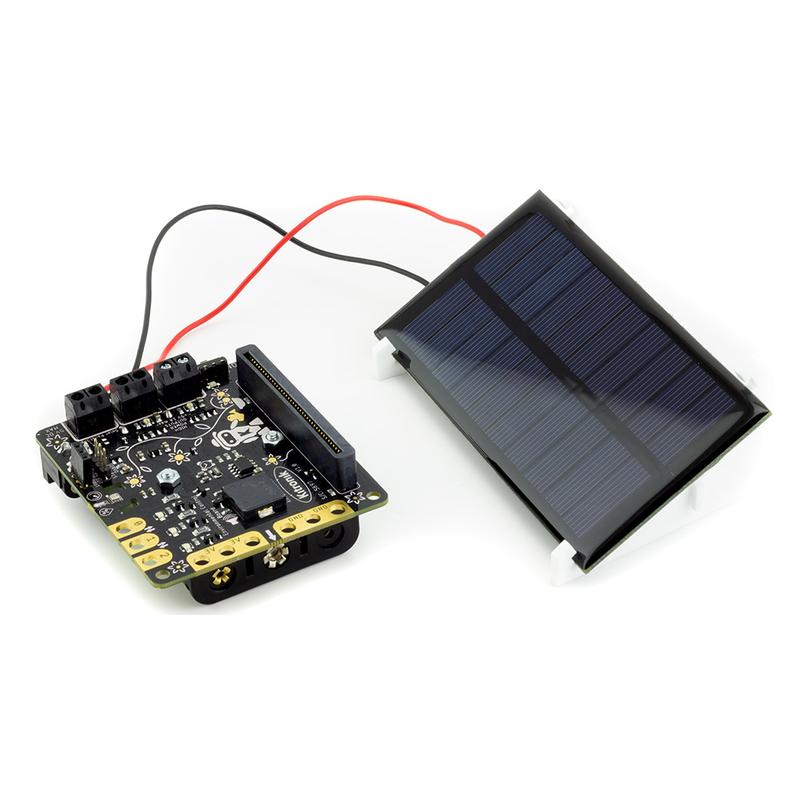

The Environmental Control Board comes supplied with its own onboard battery holder and also a terminal block for attaching solar cells. This add on pack provides everything you need to take advantage of these features, enabling you to make use of sunlight as a power source. Firstly, insert the batteries and then attach the solar cell to the terminal block with a small screwdriver. No soldering required.

Features:

• This kit provides a renewable power source for the Kitronik Environmental Control Board.
• No soldering required.
• Solar Cell Features:
• Maximum current: 130mA.
• Maximum power: 0.65W.
• Rechargeable Batteries Features:
• The batteries are rechargeable making them a cost-effective and greener way of powering your projects.
• They have a capacity of 1300mAh and a nominal output of 1.2V.
• They are of a Nickel Metal Hydride construction.
• They have no charging memory effect.
• AA Battery type.

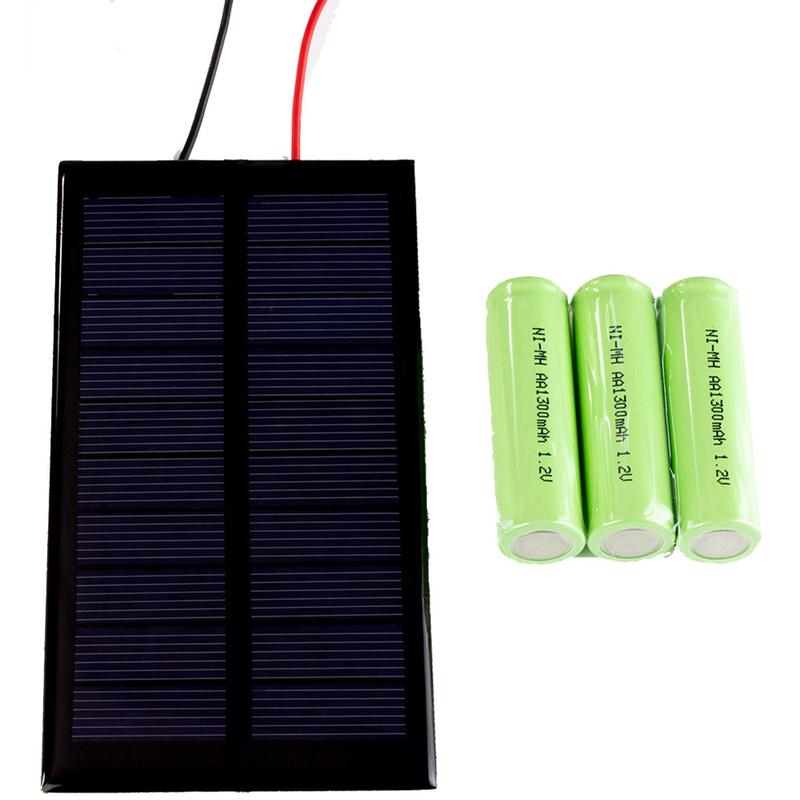

Contents:

• 3 x AA Ni-MH 1300mAh Rechargeable Batteries.
• 1 x 5.0V 130mA Polycrystalline Solar Cell.

Solar Cell Dimensions:

• Length: 110mm.
• Width: 56mm.
• Thickness: 3mm.

Requires:

• 1 x Kitronik Environmental Control Board.
• A small Screwdriver.

Resources:

• Solar Cell Datasheet.
• Batteries Datasheet.
